| A
LAMP STAND
A mission table lamp stand for those who use electric lights is shown in the accompanying illustration. It is suitable for either the office or the home and is very simple in design and construction. The stock should be quarter-sawed oak and it can be ordered from the mill ready cut to length, squared and sanded. The following pieces will be needed: 1 post, 1 1/2 in. sq. by
23 in.

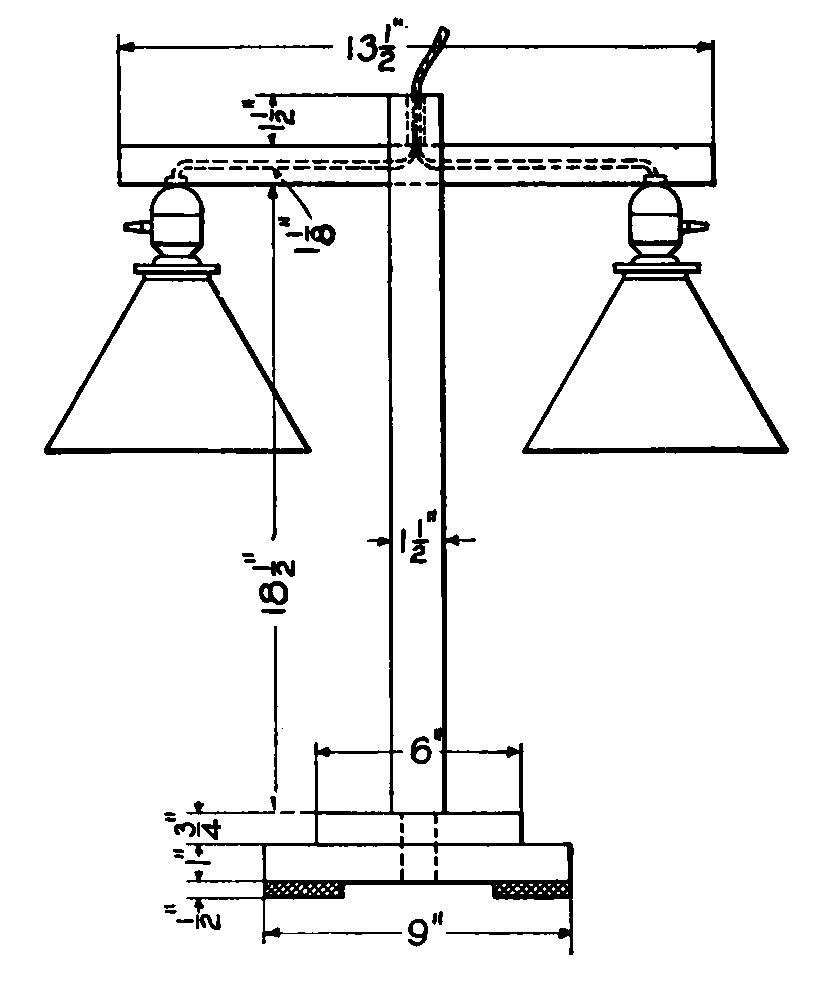

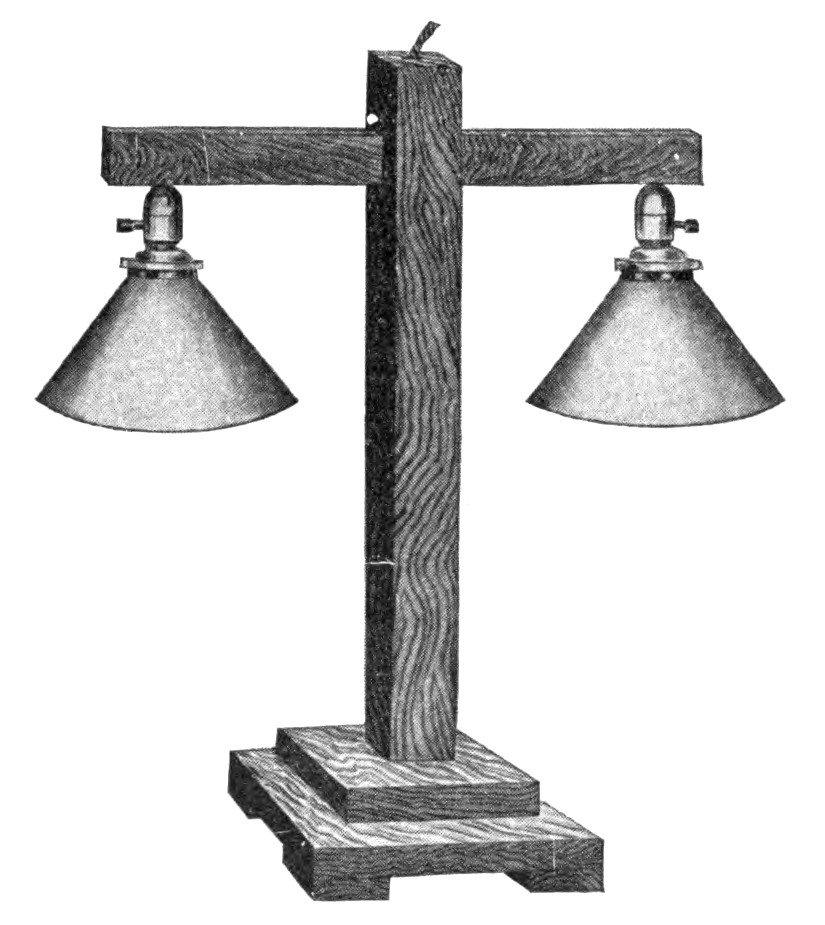

1 arm, 1 1/8 by 3/4 by 13 1/2 in. 1 block, 3/4 in. thick by 6 in. square. 1 block, 1 in. thick by 9 in. square.  Electric Lamp Stand Complete  Details of Lamp Stand (click for larger image) Square up the base blocks and fasten them together with screws as shown in the detail sketch. A mortise, 1 in. square, is cut in the center of the blocks for the center post. Lead weights, covered with felt, should be attached to the bottom, as shown. The post has a tenon cut on one end to fit the base, and a mortise cut in the other for the arm. Holes are bored in the arm from the ends for the wires. They can be plugged after the wires are in place. A hole is also bored in the top of the center post to connect with the holes in the arm for the lead wire. It is best to glue the joints together, although this is not necessary if the joints are a tight fit. Sandpaper the parts thoroughly, then stain to match the other furniture. |
